Projections

and the dot product

Mon, Feb 09, 2026

Recap and look ahead

Last time, we talked about subspaces. Our main objective today is to talk about how we project vectors onto those subspaces. To do so, we’ll introduce a key tool called the dot product.

\[ \newcommand{\vect}[1]{\mathbf{#1}} \newcommand{\dotproduct}[2]{#1 \cdot #2} \newcommand{\vectorentry}[2]{\left\lbrack#1\right\rbrack_{#2}} \newcommand{\transpose}[1]{#1^{\mathsf{T}}} \]

The dot product

Algebraically, the dot product of two vectors can be defined using our matrix entry notation as

\[ \begin{equation*} \dotproduct{\vect{u}}{\vect{v}}= \vectorentry{\vect{u}}{1}\vectorentry{\vect{v}}{1}+ \vectorentry{\vect{u}}{2}\vectorentry{\vect{v}}{2}+ \vectorentry{\vect{u}}{3}\vectorentry{\vect{v}}{3}+ \cdots+ \vectorentry{\vect{u}}{m}\vectorentry{\vect{v}}{m} = \sum_{i=1}^{m}\vectorentry{\vect{u}}{i}\vectorentry{\vect{v}}{i}. \end{equation*} \]

This literally just tells us to multiply termwise and add the results. Note that this can also be expressed as matrix multiplication. For example,

\[ \begin{bmatrix}1&2&3\end{bmatrix} \begin{bmatrix}1\\2\\3\end{bmatrix} = [1+4+9] = [14] \]

Algebraic properties

The dot product obeys the familiar properties of commutativity, distributivity over vector addition, and compatibility with scalar multiplication.

  • \(\vect{u}\cdot\vect{v} = \vect{v}\cdot\vect{u}\)
  • \(\vect{u}\cdot(\vect{v}+\vect{w}) = \vect{u}\cdot\vect{v}+\vect{u}\cdot\vect{w}\)
  • \((\lambda\vect{u})\cdot\vect{v} = \lambda(\vect{u}\cdot\vect{ v})\)

These all follow from the corresponding facts properties for matrix multiplication, which we’ve already proved! In addition, the dot product of a vector with itself is mostly, always postive: \[ \vect{u}\cdot\vect{u} \geq 0, \] the only exception being when \(\vect{u}=\vect{0}\).

Relationship with magnitude

If \(\vect{u}\in\mathbb{R}^n\), then

\[ \sqrt{\vect{u}\cdot\vect{u}} = \sqrt{\vectorentry{\vect{u}}{1}\vectorentry{\vect{u}}{1}+ \vectorentry{\vect{u}}{2}\vectorentry{\vect{u}}{2}+ \vectorentry{\vect{u}}{3}\vectorentry{\vect{u}}{3}+ \cdots+ \vectorentry{\vect{u}}{n}\vectorentry{\vect{u}}{n}}. \]

This is just the standard Pythagorean length of the vector, which we often call the norm of the vector, denoted by \(\|\vect{u}\|\).

Put another way, \[ \vect{u}\cdot\vect{u} = \|\vect{u}\|^2. \]

Relationship with angles

Another wonderful geometric property of the dot product is \[ \vect{u}\cdot\vect{v} = \|\vect{u}\|\|\vect{v}\|\cos(\theta), \] where \(\theta\) is the angle between the two vectors.

In particular, two nonzero vectors are perpendicular precisely when their dot product is zero. The dot product is, in fact, very often used as a test for perpendicularity.

We often say that two vectors are orthogonal when their dot product is zero.

Higher dimensions

If we place two non-parallel vectors with their tips at the same point, then that point, together with the tips of the vectors, determine a plane. Thus, the idea of perpendicularity extends to any dimension.

For example, \[ \begin{bmatrix} 1&2&3&4&5 \end{bmatrix} \begin{bmatrix} 1\\1\\1\\1\\-10 \end{bmatrix} = 0 \] so the vectors are perpendicular in \(\mathbb R^5\).

Orthonormal bases

Recall that a basis for a vector space is a linearly independent set of vectors that span the whole space.

Even better, the vectors could be orthogonal to one another.

Ideally, those orthogonal vectors are normalized so that the each has length one.

A basis of normalized, orthogonal vectors is called orthonormal.

Why orthonormal??

The great thing about an orthonormal basis is that it’s easy to express arbitrary vectors in terms of the basis vectors.

To see this, suppose that \(\{\vect{u}_1, \vect{u}_2,\ldots,\vect{u}_n\}\) form an orthonormal basis for \(\mathbb R^n\) and \(\vect{v} \in \mathbb R^n\) is a vector satisfying \[ \vect{v} = \alpha_1\vect{u}_1 + \alpha_2 \vect{u}_2 + \cdots + \alpha_n\vect{u}_n. \] Then, for any \(j\), \[ \vect{u}_j\cdot\vect{v} = \vect{u}_j\cdot(\alpha_1\vect{u}_1 + \alpha_2 \vect{u}_2 + \cdots + \alpha_n\vect{u}_n) = \alpha_j. \]

Example of an orthonormal basis

Note that the collection of vectors \[ \left\{ \frac{1}{3}\begin{bmatrix}2\\2\\-1\end{bmatrix}, \frac{1}{3}\begin{bmatrix}2\\-1\\2\end{bmatrix}, \frac{1}{3}\begin{bmatrix}-1\\2\\2\end{bmatrix} \right\} \] forms an orthonormal base for \(\mathbb{R}^3\).

Suppose we’d like to express another vector as a linear combination of these - a common task when dealing with bases.

Ortho example (cont)

More concretely, suppose that \(\vect{v}=\begin{bmatrix} 11&-1&2 \end{bmatrix}^{\mathsf{T}}\). Thus, we seek scalars \(\alpha_1\), \(\alpha_2\), and \(\alpha_3\) such that

\[ \begin{bmatrix} 11\\-1\\2 \end{bmatrix} = \frac{\alpha_1}{3}\begin{bmatrix}2\\2\\-1\end{bmatrix}+ \frac{\alpha_2}{3}\begin{bmatrix}2\\-1\\2\end{bmatrix}+ \frac{\alpha_3}{3}\begin{bmatrix}-1\\2\\2\end{bmatrix}. \]

I suppose we could set up a linear system of three equations in the three unknowns \(\alpha_1\), \(\alpha_2\), and \(\alpha_3\) and then solve that system.

Or…

Ortho example (cont 2)

We can simply compute the dot product between the target \(\begin{bmatrix}11&−1&2\end{bmatrix}^{\mathsf{T}}\) and the three basis vectors. We find, \[ \begin{bmatrix} 11&-1&2 \end{bmatrix} \begin{bmatrix}2/3\\2/3\\-1/3\end{bmatrix} = 6. \] \[ \begin{bmatrix} 11&-1&2 \end{bmatrix} \begin{bmatrix}2/3\\-1/3\\2/3\end{bmatrix} = 9. \] \[ \begin{bmatrix} 11&-1&2 \end{bmatrix} \begin{bmatrix}-1/3\\2/3\\2/3\end{bmatrix} = -3. \]

Ortho example (cont 3)

The previous computation indicates that \[ \begin{bmatrix} 11\\-1\\2 \end{bmatrix} = 6\begin{bmatrix}2/3\\2/3\\-1/3\end{bmatrix} + 9\begin{bmatrix}2/3\\-1/3\\2/3\end{bmatrix} - 3\begin{bmatrix}-1/3\\2/3\\2/3\end{bmatrix}. \]

What is projection?

Now, let’s suppose we’ve got an \(m\)-dimensional subspace \(U\) of \(\mathbb R^n\). Our objective is to find a function \(P:\mathbb R^n \to U\) that represents “orthogonal projection”, whatever that means…

A linear transformation \(P:\mathbb R^n \to \mathbb R^n\) is called a projection, if \(P^2=P\). Intuitively, this means that once you apply \(P\) to a vector \(\vect{x}\), reapplication of \(P\) doesn’t move the result further: \(P(P(\vect{x})) = P(\vect{x})\).

When we say that \(P\) is not just a projection but an orthogonal projection, we mean that \(P\) maps perpendicularly to the subspace. Algebraically, \[(P(\vect{x})- \vect{x}) \cdot P(\vect{x}) = 0.\]

Illustration in 3D

All this makes a fair bit more sense, once you see an illustration. And note that, in the picture below, the projection \(P(\vect{x})\) is the point on the plane that is closest to \(\vect{x}\).

Comments

  • The condition that \(P^2 = P\) ensures that the space that we’re projecting onto is fixed.

  • The condition that \[(P(\vect{x})- \vect{x}) \cdot P(\vect{x}) = 0\] ensures that the projection is perpendicular.

  • We’re going to use these conditions to

    1. Find a formula for projection onto a one-dimensional subspace and then
    2. Extend that result to higher dimensional subspaces using orthonormal bases for those subspaces.

Projection onto one-dimension

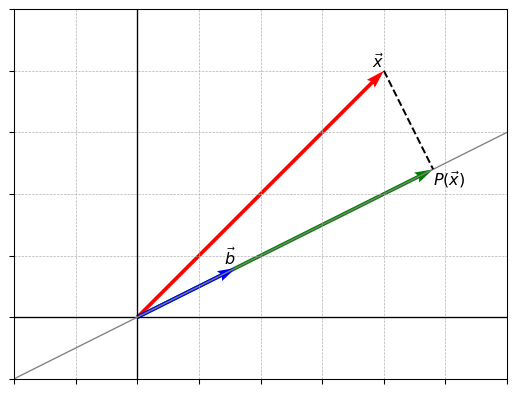

Since two vectors determine a plane, we can visualize the projection onto a one-dimensional subspace in a two-dimensional picture:

Finding the projected vector

Since \(P(\vect{x})\) lies on the the subspace determined by \(\vect{b}\), we can write \[P(\vect{x}) = \lambda \vect{b}\] for some scalar \(\lambda\). The orthogonality condition then implies that \[ (P(\vect{x})-\vect{x}) \cdot \vect{b} = (\lambda\vect{b}-\vect{x}) \cdot \vect{b} = 0. \] We can solve that for \(\lambda\) to get \[ \lambda = \frac{\vect{b} \cdot \vect{x}}{ \vect{b}\cdot\vect{b}} \text{ so that } P(\vect{x}) = \frac{\vect{b}\cdot\vect{x}}{\vect{b}\cdot\vect{b}} \vect{b}. \]

Example 1D projection

Suppose we wish to project \(\mathbf{x}\) onto \(\mathbf{b}\), where \[ \mathbf{b} = \begin{bmatrix} 1 \\ -1 \\ 2 \end{bmatrix} \quad \text{and} \quad \mathbf{x} = \begin{bmatrix} 3 \\ 4 \\ 5 \end{bmatrix}. \] Note that

  • \(\vect{b}\cdot\vect{x} = \mathbf{b}^{\mathsf{T}}\mathbf{x} = 9\) and
  • \(\vect{b}\cdot\vect{b} = \mathbf{b}^{\mathsf{T}}\mathbf{b} = 6\), thus

\[ P(\vect{x}) = \frac{9}{6}\begin{bmatrix} 1&-1&2 \end{bmatrix}^{\mathsf{T}} = \begin{bmatrix} 3/2&-3/2&6 \end{bmatrix}^{\mathsf{T}}. \]

Finding the projection matrix

Projection is a linear operation so we should be able to find a matrix \(B\) with the property that \(P(\vect{x}) = B\vect{x}\). To do so, we’ll need a matrix representation of the inner product so let’s suppose that it’s just the regular dot product given by \[ \vect{x}\cdot\vect{y} = \mathbf{x}^{\mathsf{T}}\mathbf{y}, \] Then, our formula becomes \[\begin{aligned} P(\mathbf{x}) = \frac{\mathbf{b}\cdot\mathbf{x}}{\mathbf{b}\cdot\mathbf{b}} \mathbf{b} = \mathbf{b}\frac{\mathbf{b}^{\mathsf{T}}\mathbf{x}}{\mathbf{b}^{\mathsf{T}}\mathbf{b}} = \frac{\mathbf{b}\mathbf{b}^{\mathsf{T}}}{\mathbf{b}^{\mathsf{T}}\mathbf{b}}\mathbf{x} \end{aligned}\] Thus, \[ B = \frac{\mathbf{b}\mathbf{b}^{\mathsf{T}}}{\mathbf{b}^{\mathsf{T}}\mathbf{b}}. \]

Example

Continuing with our working example \[ \mathbf{b} = \begin{bmatrix} 1 \\ -1 \\ 2 \end{bmatrix} \quad \text{and} \quad \mathbf{x} = \begin{bmatrix} 3 \\ 4 \\ 5 \end{bmatrix}, \] note that \(\mathbf{b}^{\mathsf{T}}\mathbf{b} = 6\) and \[ \mathbf{b}\mathbf{b}^{\mathsf{T}} = \begin{bmatrix} 1 \\ -1 \\ 2 \end{bmatrix}\begin{bmatrix} 1 & -1 & 2 \end{bmatrix} =\begin{bmatrix} 1 & -1 & 2 \\ -1 & 1 & -2 \\ 2 & -2 & 4 \end{bmatrix}. \]

Illustration of our computation

Here’s an image of the projection of the point/vector \(\vect{x}\) onto the line spanned by \(\vect{b}\):

Projection onto a higher dimensional subspace

We now turn to the question of projecting a point in \(\mathbb R^n\) onto an \(m\)-dimensional subspace \(U \subset \mathbb R^n\). Generally, the subspace \(U\) is expressed as the span of a collection of basis vectors; thus, we’ll assume that we have vectors \[\vect{b}_1,\vect{b}_2,\ldots,\vect{b}_m\] that span \(U\). Now, if \(\vect{x}\in\mathbb R^n\) and \(P:\mathbb R^n \to U\) is a projection, then we have \[ P(\vect{x}) = \lambda_1\vect{b}_1 + \lambda_2\vect{b}_2 + \cdots + \lambda_m\vect{b}_m. \]

Subspace projection

Note the last line of the previous slide \[ P(\vect{x}) = \lambda_1\vect{b}_1 + \lambda_2\vect{b}_2 + \cdots + \lambda_m\vect{b}_m. \] expresses the fact that \(P(\vect{x})\) is a linear combination of the \(m\) basis vectors for the subspace \(U\). Thus, we could write \[P(\vect{x}) = B\vect{\lambda},\] where the columns of \(B\) are exactly the basis vectors of \(U\). Note that \(B\) is \(n\times m\) and that the orthogonality condition translates to \[B^{\mathsf{T}} (\vect{x}-B\vect{\lambda}) = \vect{0}.\]

Double checking the formula

We’ve arrived at \(B^{\mathsf{T}} (B\vect{\lambda}-\vect{x}) = \vect{0},\) where

  • \(B\) is \(n\times m\), and
  • \(\vect{\lambda}\) is \(m\times 1\), so that
  • \(B\vect{\lambda}\) is \(n\times 1\), which matches
  • \(\vect{x}\), which is also \(n\times 1\), so that
  • we can multiply by \(B^{\mathsf{T}}\), which is \(m\times n\), to get
  • the \(m\)-dimensional zero vector \(\vect{0}\).

Of course, this looks a lot like our one-dimensional formula \((\lambda\vect{x}-\vect{x})\cdot\vect{b} = 0\), if we wrote that as \(\vect{b}^{\mathsf{T}} (\lambda\vect{x}-\vect{x})=0\). In fact, the higher dimensional formula is exactly a list of \(m\) of the one-dimensional formulae codified into a matrix.

Finding the projection

Finally, we can rewrite \(B^{\mathsf{T}} (B\vect{\lambda}-\vect{x}) = \vect{0}\) as \[B^{\mathsf{T}}B\vect{\lambda} = B^{\mathsf{T}}\vect{x}.\] We can solve that equation for \(\lambda\) quite efficiently using row reduction and back-substitution; then \(B\vect{\lambda}\) is the projection of \(\vect{x}\) onto the subspace \(U\).

If one really wants the projection matrix, they could invert \(B^{\mathsf{T}}B\) to solve for \(\lambda\) to express \[B\vect{\lambda} = B(B^{\mathsf{T}}B)^{-1}B^{\mathsf{T}}\vect{x}.\] Thus, \(B(B^{\mathsf{T}}B)^{-1}B^{\mathsf{T}}\) is the projection matrix. While that’s of theoretical interest, it’s rarely done, since matrix inversion is very inefficient.

Example

Suppose we’re working in \(\mathbb R^3\) and we’d like to project the vector \(\vect{x}\) onto the two-dimensional subspace spanned by \(\vect{b}_1\) and \(\vect{b}_2\), where \[ \vect{x} = \begin{bmatrix} 4 \\ 5 \\ 6 \end{bmatrix}, \quad \vect{b}_1 = \begin{bmatrix} 1 \\ 2 \\ 3 \end{bmatrix}, \text{ and } \vect{b}_2 = \begin{bmatrix} 2 \\ -1 \\ 1 \end{bmatrix}. \] We do so by solving the normal equations \[ B^{\mathsf{T}} B \vect{\lambda} = B^{\mathsf{T}} \vect{x} \] and then computing \(B\vect{\lambda}\).

Example (cont)

Well, \[ B^{\mathsf{T}} B = \begin{bmatrix} 1 & 2 & 3 \\ 2 & -1 & 1 \end{bmatrix} \begin{bmatrix} 1 & 2 \\ 2 & -1 \\ 3 & 1 \end{bmatrix} = \begin{bmatrix} 14 & 3 \\ 3 & 6 \end{bmatrix} \] and \[ B^{\mathsf{T}} x = \begin{bmatrix} 1 & 2 & 3 \\ 2 & -1 & 1 \end{bmatrix} \begin{bmatrix} 4 \\ 5 \\ 6 \end{bmatrix} = \begin{bmatrix} 32 \\ 9 \end{bmatrix} \]

Example (cont)

Thus, we’ve got to solve \[ \begin{bmatrix} 14 & 3 \\ 3 & 6 \end{bmatrix} \begin{bmatrix} \lambda_1 \\ \lambda_2 \end{bmatrix} = \begin{bmatrix} 32 \\ 9 \end{bmatrix} \] and we find that \[ \lambda_1 = \frac{11}{5}, \quad \lambda_2 = \frac{2}{5}. \] Thus, finally, \[ P(\vect{x}) = B \vect{\lambda} = \begin{bmatrix} 1 & 2 \\ 2 & -1 \\ 3 & 1 \end{bmatrix} \begin{bmatrix} \frac{11}{5} \\ \frac{2}{5} \end{bmatrix} = \begin{bmatrix} 3 \\ 4 \\ 7 \end{bmatrix} \]

Illustration

Application to least squares

Now, let’s recall the basic linear regression problem. We’re given data represented as a list of points:

\[ \{(x_i,y_i)\}_{i=1}^N = \{(x_1,y_1),(x_2,y_2),(x_3,y_3),\ldots,(x_N,y_N)\}. \]

We model that data with a function \(f(x) = ax+b\) and wish to minimize the error as a function of the parameters \(a\) and \(b\):

\[ E(a,b) = \sum_{i=1}^N \left((a\,x_i + b) - y_i\right)^2 \]

Reformulation using linear algebra

Note that the expression for the error \[ E(a,b) = \sum_{i=1}^N \left((a\,x_i + b) - y_i\right)^2 \] is exactly equivalent to \[ \left\|\begin{pmatrix} x_1 & 1 \\ x_2 & 1 \\ \vdots & \vdots \\ x_N & 1 \end{pmatrix} \begin{bmatrix} a \\ b \end{bmatrix} - \begin{pmatrix} y_1 \\ y_2 \\ \vdots \\ y_N \end{pmatrix}\right\|^2. \] Thus, to minimize the error, we should minimize that norm, which is equivalent to orthogonal projection.

Example

Suppose we wish to find the least square line approximating the points below. Be sure to examine the code!

Code
import matplotlib.pyplot as plt
import numpy as np

np.random.seed(1)
xs = np.random.uniform(-10,10,20)
ys = [x/2 + 1 + np.random.normal(0,1) for x in xs]
plt.plot(xs,ys, '.')

Example (algebraic matrix setup)

To solve this, we’ll setup the matrices \(X\) and \(Y\) together with the vector \(\vect{a}\) defined by \[ X = \begin{bmatrix} x_1 & 1 \\ x_2 & 1 \\ \vdots & \vdots \\ x_N & 1 \end{bmatrix}, \quad Y = \begin{pmatrix} y_1 \\ y_2 \\ \vdots \\ y_N \end{pmatrix}, \quad \vect{a} = \begin{bmatrix} a_1 \\ a_0 \end{bmatrix}. \] We’ll then solve the least squares problem \[ X\vect{a}=Y \text{ by solving } X^{\mathsf{T}}X\vect{a} = X^{\mathsf{T}}\vect{Y}. \]

Example (programmatic matrix setup)

Here’s the setup of the matrix \(X\) in code:

X = np.array([xs,np.ones(len(xs))]).transpose()
X.tolist()
[[-1.65955990594852, 1.0],
 [4.4064898688431615, 1.0],
 [-9.997712503653101, 1.0],
 [-3.9533485473632046, 1.0],
 [-7.064882183657739, 1.0],
 [-8.153228104624045, 1.0],
 [-6.274795772446582, 1.0],
 [-3.088785459139045, 1.0],
 [-2.0646505153866013, 1.0],
 [0.7763346800671389, 1.0],
 [-1.616109711934104, 1.0],
 [3.70439000793519, 1.0],
 [-5.910955005369651, 1.0],
 [7.562348727818908, 1.0],
 [-9.452248136041476, 1.0],
 [3.4093502035680445, 1.0],
 [-1.6539039526574606, 1.0],
 [1.1737965689150331, 1.0],
 [-7.192261228095324, 1.0],
 [-6.037970218302425, 1.0]]

Example (solution)

Now, the scipy.linalg module has a solve function, that’s built specifically for linear systems. If the python variables A and b store the matrix and vector for the mathematical system \(A\vect{x}=\vect{b}\), then we simply call

solve(A,b)

Of course, we need to apply this to our system \(X^{\mathsf{T}}X\vect{a} = X^{\mathsf{T}}\vect{Y}\):

from scipy.linalg import solve
a,b = solve(X.transpose().dot(X), X.transpose().dot(ys))
a,b
(np.float64(0.4879503964145996), np.float64(0.8608633772379035))

This indicates that our regression line is \(y=0.48795x+0.86086\).

Example (plot)

Naturally, we want to see a plot to make sure this works!

def f(x): return a*x+b
fy = [f(x) for x in xs]
plt.plot(xs,ys, '.')
plt.plot(xs, fy)
