Linear Regression

Theory and practice

This set of class notes presents linear regression in both theory and practice. That is,

General linear regression

The general linear regression problem is to solve \[ A\mathbf{x} = \mathbf{b} \] as “closely” as you can. We do this by solving the so-called normal equations: \[ A^{\mathsf{T}}A\mathbf{x} = A^{\mathsf{T}}\mathbf{b}. \] If we write that as \[ A^{\mathsf{T}}(A\mathbf{x} - \mathbf{b}) = \mathbf{0}, \] then we can see that this literally says that every column of \(A\) is perpendicular to \(A\mathbf{x} - \mathbf{b}\). That happens exactly when \(A\mathbf{x}\) is as close as possible to \(\mathbf{b}\).

Example

Suppose we wish to solve the system \[ \begin{bmatrix}1&0\\2&-1\\1&1\end{bmatrix} \begin{bmatrix}x_1\\x_2\end{bmatrix} = \begin{bmatrix}1\\0\\3\end{bmatrix}. \] The system is overdetermined so we expect there’s no solution. We also recognize it as a least squares problem with \[ A = \begin{bmatrix}1&0\\2&-1\\1&1\end{bmatrix} \text{ and } \mathbf{b} = \begin{bmatrix}1\\0\\3\end{bmatrix}. \] We multiply both sides by \(A^{\mathsf{T}}\) to get \[ \begin{bmatrix}1&2&1\\0&-1&1\end{bmatrix} \begin{bmatrix}1&0\\2&-1\\1&1\end{bmatrix} \begin{bmatrix}x_1\\x_2\end{bmatrix} = \begin{bmatrix}1&2&1\\0&-1&1\end{bmatrix} \begin{bmatrix}1\\0\\3\end{bmatrix} \] or \[ \begin{bmatrix}6&-1\\-1&2\end{bmatrix} \begin{bmatrix}x_1\\x_2\end{bmatrix} = \begin{bmatrix}4\\3\end{bmatrix}. \]

By construction, this system always has a solution, though, it might have more than one solution. That happens only when the columns of \(A\) are linearly dependent. It’s pretty easy to see that \[ \begin{bmatrix}x_1\\x_2\end{bmatrix} = \begin{bmatrix}1\\2\end{bmatrix} \] is the unique solution in this case.

Geometrically, this means that the point \([1\:\:\:2]^{\mathsf{T}}\) maps to the point in the range of the linear transformation induced by \(A\) that is closest to the target point \([1\:\:\:0\:\:\:3]^{\mathsf{T}}\).

Simple linear regression

Simple linear regression refers to the process of fitting a line through a list of \(n\) data points of the form \[ \{(x_1, y_1), (x_2, y_2), \ldots, (x_n, y_n)\}. \] We suppose that the model function has the form \[ f(x) = ax+b. \] We can then quantify the total squared error from this estimate as \[ E(a,b)=\sum_{i=1}^n (ax_i+b-y_i)^2. \] We translate that to the linear algebra setting by defining \[ X = \begin{bmatrix} x_1 & 1 \\ x_2 & 1 \\ \vdots & \vdots \\ x_n & 1 \end{bmatrix} \text{ and } Y = \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_n \end{bmatrix} \] The matrix \(X\) is often called the design matrix. We can then rewrite the total error as \[ E(a,b) = \left\|X\begin{bmatrix}a \\ b\end{bmatrix} - Y\right\|^2. \] From the linear algebra perspective, we are looking for the orthogonal projection of \(Y\) onto the column space of \(X\) because that’s the point of the form \(X[a \: \: b]^{\mathsf{T}}\) that’s closest to \(Y\). Thus, we recognize this as a special case of linear regression so we solve the normal equations \[ X^{\mathsf{T}}X \begin{bmatrix}a \\ b\end{bmatrix} = X^{\mathsf{T}}Y. \]

Other variants

There are lots of variations on this theme.

Multiple linear regression

Let’s suppose we have \(n\) points in space of the form \[ (x_1,y_1,z_1),(x_2,y_2,z_2),\ldots,(x_n,y_n,z_n). \] If we wish to approximate these with a plane, we might suppose that the form of that plane is \[ f(x,y) = ax+by+c. \]

The quick, linear algebra way to plug all those \((x,y)\) points into \(f\) and see how close the results are to the \(z\) is to set up the design matrix and multiply that times \([a\:\:\:b\:\:\:c]^{\mathsf{T}}\):

\[ \begin{bmatrix} x_1 & y_1 & 1 \\ x_2 & y_2 & 1 \\ \vdots & \vdots & \vdots \\ x_n & y_n & 1 \end{bmatrix} \begin{bmatrix} a \\ b \\ c \end{bmatrix} = \begin{bmatrix} z_1 \\ z_2 \\ \vdots \\ z_n \end{bmatrix}. \]

It’s probably easy to believe that the dimension of the domain can be as large as you want. The dimension of the range can be as large as you want, as well.

Polynomial regression

We can use more complicated model functions, like polynomials. Suppose, again, that we’ve got data like \[ \{(x_1, y_1), (x_2, y_2), \ldots, (x_n, y_n)\}. \] Now, though, we’d like to fit a function of the form \[ f(x) = a_mx^m + a_{m-1}x^{m-1} + \cdots + a_1x + a_0. \] We expect that we might be able to use linear regression since this is a linear combination of the functions \[ \{1,x,x^2,\ldots,x^m\}. \] In fact we can set up our model using a design matrix: \[ \begin{bmatrix} x_1^m & x_1^{m-1} & \cdots & x_1 & 1 \\ x_2^m & x_2^{m-1} & \cdots & x_2 & 1 \\ \vdots & \vdots & \ddots & \vdots & \vdots \\ x_n^m & x_n^{m-1} & \cdots & x_n & 1 \\ \end{bmatrix} \begin{bmatrix}a_m \\ a_{m-1} \\ \vdots \\ a_1 \\ a_0\end{bmatrix} = \begin{bmatrix}y_1 \\ y_2 \\ \vdots \\ y_n\end{bmatrix}. \]

If we solve this in the least squares sense, we should get a good polynomial fit to the data.

Examples - in code

Now, we’re going to take a look at several examples illustrating these ideas. Note that these are real examples with real data and, as such, they tend to be large. Thus, we won’t solve these by hand but on the computer.

More, we’ll use SciKit Learn, which is genuine, machine learning software. As such, many of the details we’ve just discussed will be concealed under the hood. Those details are still there and, if you ever become a machine learning developer, you’d need to know those details to work with the source code. Even as a user, there are often times where knowledge of the algorithms come in handy.

Imports

Let’s begin by importing the libraries we’ll use.

# Numerics and data
import numpy as np
import pandas as pd

# Graphics
import plotly.express as px
import plotly.graph_objects as go
import matplotlib.pyplot as plt

# SciKit Learn Magic
from sklearn.linear_model import LinearRegression
from sklearn.metrics import mean_squared_error

Data

Our first couple of examples will work with a simple version of the well-known Palmer Penguin data set. Let’s read that into our kernel right now:

penguin_data = pd.read_csv('https://marksmath.org/data/penguins.csv').dropna()
penguin_data.head(3)
species island culmen_length_mm culmen_depth_mm flipper_length_mm body_mass_g sex
0 Adelie Torgersen 39.1 18.7 181 3750 MALE
1 Adelie Torgersen 39.5 17.4 186 3800 FEMALE
2 Adelie Torgersen 40.3 18.0 195 3250 FEMALE

Looks like there are four numerical variables. We can get a rough sense of their distribution using the describe method:

penguin_data[[
  'culmen_length_mm','culmen_depth_mm', 'flipper_length_mm', 'body_mass_g'
]].describe()
culmen_length_mm culmen_depth_mm flipper_length_mm body_mass_g
count 333.000000 333.000000 333.000000 333.000000
mean 43.992793 17.164865 200.966967 4207.057057
std 5.468668 1.969235 14.015765 805.215802
min 32.100000 13.100000 172.000000 2700.000000
25% 39.500000 15.600000 190.000000 3550.000000
50% 44.500000 17.300000 197.000000 4050.000000
75% 48.600000 18.700000 213.000000 4775.000000
max 59.600000 21.500000 231.000000 6300.000000

Simple linear regression

A natural application of simple linear regression is to estimate body mass from one of the other numerical variables. Let’s try to do so using culmen length (which is length of the beak).

# The design matrix, which has one column;
# Constants are handled automatically
X = penguin_data[['culmen_length_mm']].to_numpy()

# The target vector
Y = penguin_data["body_mass_g"].to_numpy()


# Define and fit the model
# An important general pattern
model = LinearRegression(fit_intercept=True)
model.fit(X, Y)

# Print out the model function
a,b = model.coef_[0], model.intercept_
print(f"ax + b = {a:0.3f} x + {b:0.3f}")

# Print out the residual
pred = model.predict(X)
res1 = np.sum((Y - pred)**2)
print("Residual:", res1)

# And the mean squared error
print("MSE:", mean_squared_error(Y, pred))

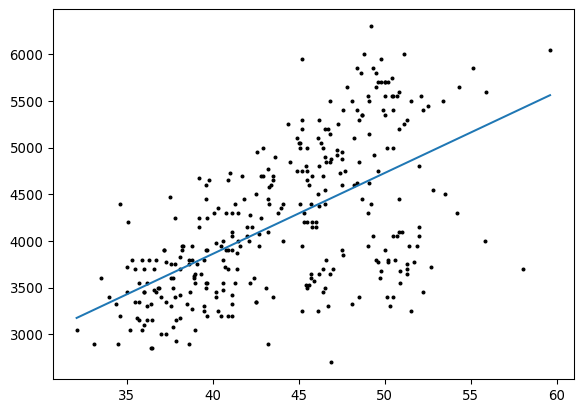

# Plot the data
plt.plot(X, Y, 'ok', markersize=2)

# Define an plot the model function
def f(x):
    return a*x + b
xmin = min(X)
xmax = max(X)
plt.plot([xmin,xmax], [f(xmin), f(xmax)])
ax + b = 86.792 x + 388.845
Residual: 140467132.88826814
MSE: 421823.2218866911

Multiple regression

The process is almost identical to perform multiple regression. Naturally, we do need to indicate which variables we want to use; perhaps, we’ll add flipper length on. The nature of our model function is different, if we want to display it. In practice, we would typically use the model.predict method to compute values with the model.

# Design and target; X has two variables
X = penguin_data[['flipper_length_mm', 'culmen_length_mm']]
Y = penguin_data["body_mass_g"]

# Same pattern to fit the model:
model = LinearRegression(fit_intercept=True)
model.fit(X, Y)

# Print out the model function
a,b,c = model.coef_[0], model.coef_[1], model.intercept_
print(f"a x_1 + b x_2 + c = {a:0.1f} x_1 + {b:0.1} x_2 - {-c:0.1f}")

# Print out the metrics
pred = model.predict(X)
res2 = np.sum((Y - pred)**2)
print("Res:", res2)
print("MSE:", mean_squared_error(Y, pred))
a x_1 + b x_2 + c = 48.9 x_1 + 5e+00 x_2 - 5836.3
Res: 51071962.94513336
MSE: 153369.25809349355

We are still in the range where we can plot the model function with the data.

x = penguin_data["flipper_length_mm"]
y = penguin_data["culmen_length_mm"]

x_range = np.linspace(x.min(), x.max(), 40)
y_range = np.linspace(y.min(), y.max(), 40)
X_grid, Y_grid = np.meshgrid(x_range, y_range)
Z_grid = a*X_grid +b*Y_grid + c

fig = px.scatter_3d(
    penguin_data,
    x="flipper_length_mm",
    y="culmen_length_mm",
    z="body_mass_g",
    opacity=0.75
)
fig.add_trace(
    go.Surface(
        x=X_grid,
        y=Y_grid,
        z=Z_grid,
        opacity=0.45,
        showscale=False
    )
)
fig.update_layout(
    scene=dict(
        xaxis_title="Flipper length (mm)",
        yaxis_title="Culmen length (mm)",
        zaxis_title="Body mass (g)"
    ),
    width=650,
    height=650
)
fig.show(config={"displayModeBar": False})

Galileo’s ramp

As mentioned, you can fit higher order polynomials to data using linear regression as well. It’s generally a mistake to use more complicated functions without a good theoretical foundation. One situation where that should work is in the study of objects in free fall.

This example is based on Galileo’s 1595 experiments on projectile motion. In one such experiment, he let a ball roll down an inclined ramp right off of a table and measured its vertical distance traveled. He did this for several ramp heights and thus obtained a relationship between the height at which he released the ball and the vertical distance that the ball traveled.

Galileo’s actual data was published in this paper: - Teaching Statistics with Data of Historic Significance: Galileo’s Gravity and Motion Experiments.

I’ve got that data stored on my website so that we can load and view it directly with Python like so:

g_data = pd.read_csv('https://marksmath.org/data/galileos_ramp.csv')
g_data
H D
0 1000 573
1 800 534
2 600 495
3 450 451
4 300 395
5 200 337
6 100 253

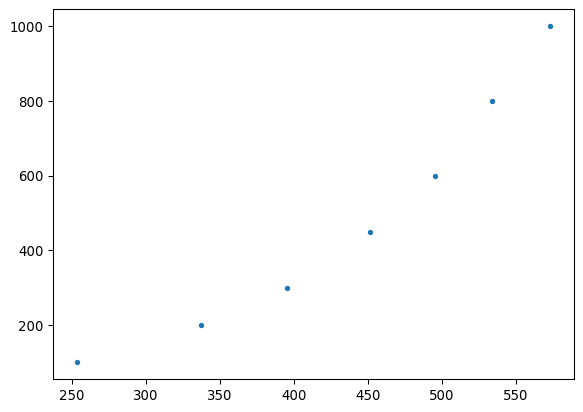

The unit of distance is the “punti”, according to the source. Here’s a plot of the data:

D = g_data[['D']].to_numpy()
H = g_data.H.to_numpy()
plt.plot(D,H, '.')

While this rather flips the role of what we might call explanatory and response, it does look like height released is related to distance traveled via a quadratic - that is, \[H = a D^2 + b D + c.\]

Note that this is a situation where an understanding of the design matrix is quite useful!

X = np.array([g_data.D**2, g_data.D]).transpose()
Y = g_data.H
model = LinearRegression(fit_intercept=True)
model.fit(X, Y)

a,b = model.coef_
c = model.intercept_

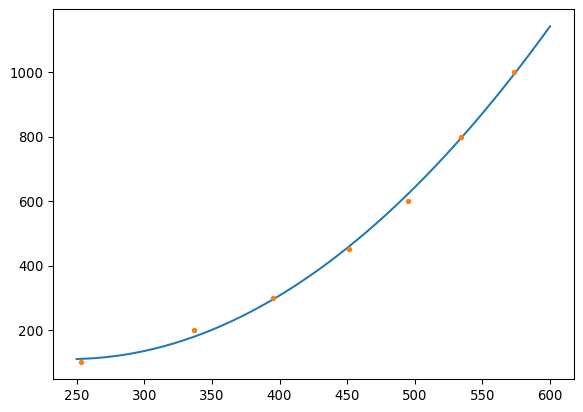

print(f"f(x) = {a:0.5f} x^2 - {-b:0.5f} x + {c:0.2f}")

def f(x):
  return a*x**2 + b*x + c
xs = np.linspace(250,600)
ys = f(xs)
plt.plot(xs,ys)
plt.plot(g_data.D,g_data.H, '.')
f(x) = 0.00818 x^2 - 4.00484 x + 600.05

Overfitting

Finally, let’s end this with an illustration of the very important topic of overfitting. This happens when we use an overly complicated model function that might fit the specific data well but doesn’t fit similar data well at all. The root cause is use of a model whose structure is not justfied by the data.

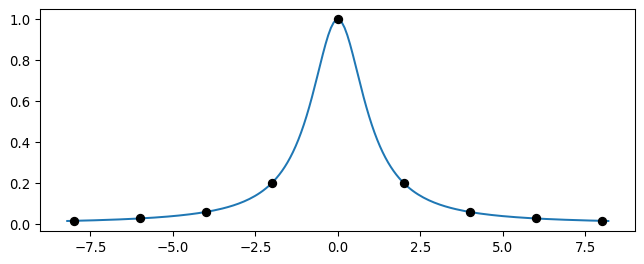

Here’s some data generated by the function \[ f(x) = \frac{1}{1+x^2}. \]

plt.figure(figsize=(8,3))
N = 9
f = lambda x: 1/(1+x**2)
xs = np.linspace(-8.2,8.2,200)
ys = f(xs)
plt.plot(xs,ys, '-')
x = np.linspace(-8,8,N)
y = f(x)
plt.plot(x,y, 'ok')

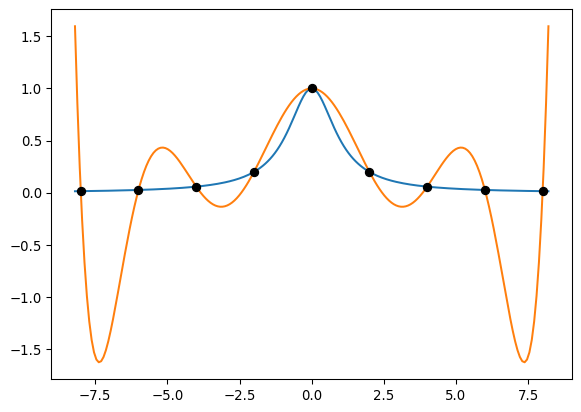

Suppose we try to fit that function with a polynomial. If we use enough terms, we should be able to fit the data exactly! Let’s try.

X = np.array([x**(N-1-p) for p in range(len(x))]).T
model = LinearRegression(fit_intercept=True)
model.fit(X, y)

c = model.coef_
def F(x):
    return sum([c[i]*x**(N-1-i) for i in range(N)]) + model.intercept_
xs = np.linspace(-8.2,8.2,200)
plt.plot(xs,f(xs))
plt.plot(xs,F(xs))
plt.plot(x,y, 'ok')
