Inputs.table(penguin_data)Intro to MML
And K-Nearest Neighbors
Mon, Jan 12, 2026
What is Machine Learning?
Machine learning consists of a class of algorithms that can consume data to produce a function that performs some desired task.
Colloquially, we say that the algorithm “learns” from data.
Types of tasks
Sometimes, the data is labeled by class names and the objective is to classify similar data into those same classes. This process is called classification.
Sometimes, the data is labeled by continuous numeric values and the objective is computation the corresponding value for similar data. That process is called regression.
A closer look at classification
In this intro presentation, we’re going to take a look at a couple of classification problems and a surprisingly simple yet effective machine learning algorithm to solving such problems. This is a real technique in machine learning because:
- We don’t write a program from scratch that performs the classification using classic algorithmic techniques.
- Rather, we write a general classification algorithm that’s based on known, labelled data.
- When we want to use the program to perform a specific task, we feed it a slew of relevant data. Different data would yield different results.
Data
To begin, let’s clearly state what we mean by data and how we need it formatted in the context of machine learning.
Generally, we are interested in observational level data. Furthermore,
- each row should correspond to an individual observation and
- each column should correspond to some attribute of the individual or variable of the data.
Data formatted in this way is often called tidy data. I’ll typically refer to this type of data as a data table or data frame.
Palmer penguins
As a concrete example, we’ll start the now widely used Palmer penguin data set.
This data was collected in a 2014 study at the Palmer Research station in Antarctica, as described in this paper.
It was collected for use as an R data package, as described on Allison Horst’s Github page.
We’ll use it a few times throughout this semester.
The data set
The penguin data set looks like so:
This data has 342 observations corresponding to actual penguins; these appear as rows in the table. There are seven attributes associated with each penguin that appear as columns in the table.
The table is interactive so that you can scroll through the complete dataset, if you like.
Distinction with summary data
To be clear about what we mean by observational level, tidy data, let’s draw a distinction between it an summary level data.
To generate summary level data for the penguin data set, we might group the penguins by species, compute the average mass per species, and present that as a summary table. The result might look like so:
{
const rollups = d3.rollups(
penguin_data,
a => d3.mean(a, o => o.body_mass_g),
o => o.species
);
console.log(rollups)
const table = d3.create('table');
const thead = table.append('tr');
thead.append('th').text('Species');
thead.append('th').text('Avg Mass');
rollups.forEach(function([s,m]) {
const tr = table.append('tr')
tr.append('td').text(s)
tr.append('td').text(`${d3.format('0.2f')(m)} g`)
})
return table.node()
}This might very well be quite useful. It’s not tidy data, though, and it’s not the type of data that we build machine learning algorithms with.
KNN
Now that we know what data is and what type we’re dealing with, we can describe the K-Nearest Neighbors algorithm.
Just to avoid potential confusion down the road, it might be worth distinguishing K Nearest Neighbors from K-Means, which is a clustering algorithm. The two techniques are really quite different but sometimes confused due to their similar names.
Basic idea
The fundamental idea behind KNN is to examine other data near the observation point under consideration and to guess the label based on those other values. We might examine 5 nearest neighbors, 8 nearest neighbors, or 15 nearest neighbors. In general, we examine \(k\) nearest neighbors, which is where the name comes from.
How we determine our guess for the label depends on the nature of the data.
- If the label is numeric, we often average the neighboring values.
- If the label is categorical, we might use majority vote.
Example
Into which species would you classify the first entry ???
| species | island | sex | culmen_length_mm | body_mass_g | culmen_depth_mm | flipper_length_mm |
|---|---|---|---|---|---|---|
| ??? | Dream | MALE | 48 | 4850 | 15 | 222 |
| ... | ... | ... | ... | ... | ... | ... |
| Gentoo | Biscoe | FEMALE | 46.1 | 4500 | 13.2 | 211 |
| Adelie | Biscoe | MALE | 37.7 | 3600 | 18.7 | 180 |
| Gentoo | Biscoe | MALE | 50.0 | 5700 | 16.3 | 230 |
| Adelie | Biscoe | FEMALE | 37.8 | 3400 | 18.3 | 174 |
| Chinstrap | Dream | FEMALE | 46.5 | 3500 | 17.9 | 192 |
| Adelie | Dream | FEMALE | 39.5 | 3250 | 16.7 | 178 |
| Adelie | Dream | MALE | 37.2 | 3900 | 18.1 | 178 |
| Gentoo | Biscoe | FEMALE | 48.7 | 4450 | 14.1 | 210 |
| Chinstrap | Dream | MALE | 51.3 | 3650 | 19.2 | 193 |
| Chinstrap | Dream | MALE | 50.0 | 3900 | 19.5 | 196 |

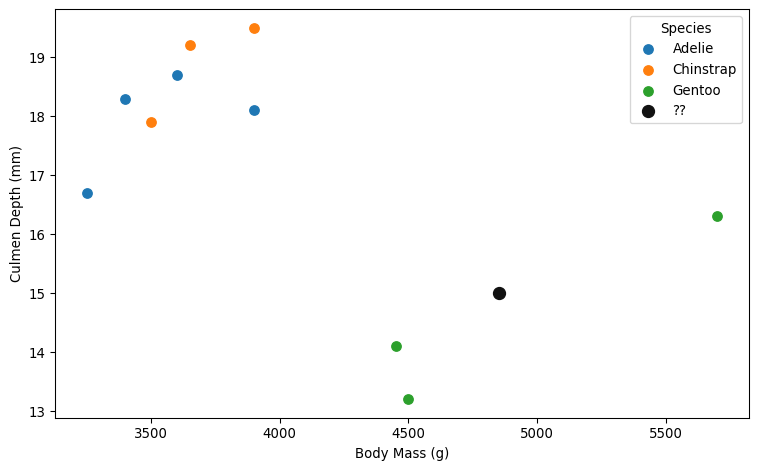

A plot of that data
Here’s a plot of that same data in the body_mass/culmen_depth plane. The classification is even more obvious, now.

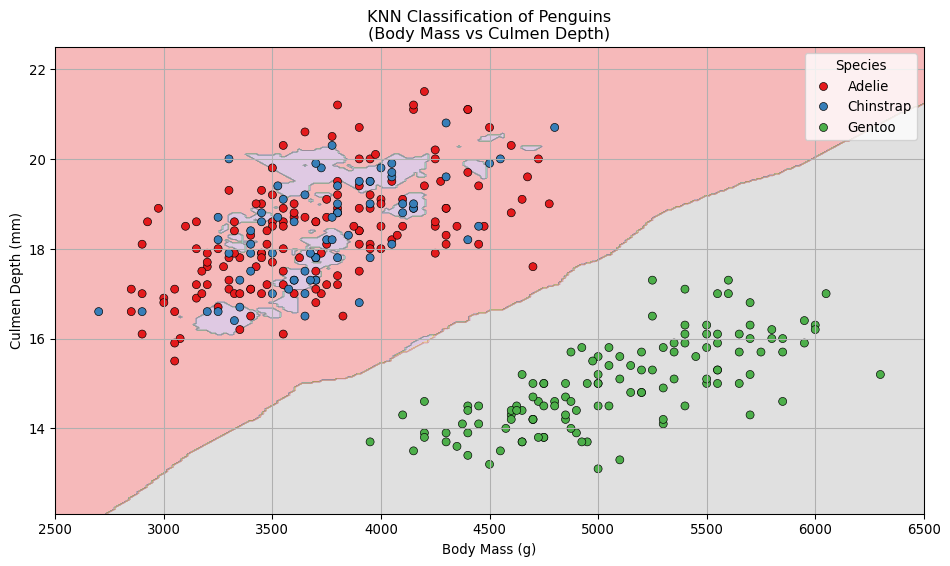

Classification plot
Here’s a so-called classification plot of the full dataset:
Explanation
In that classification plot, the algorithm
- Sets up a dense grid of points in the BodyMass/CulmenDepth plane,
- For each point, it
- Finds the 5 closest data points,
- Classifies the selected point by majority vote from those 5 closest points, and
- Colors the selected point by that classification.
As we can see, the algorithm can easily distinguish between Gentoo and the other two species. It doesn’t distinguish between Adelie and Chinstrap very well. We can use more variables to improve it, though!
The MNIST Digits
We can now describe how KNN works for digit recognition. The algorithm is built on the now classic MNIST Digit Dataset. This data consists of two key components:
- A list of \(70,000\) vectors of length \(784\). Each vector can be partitioned into a \(28\times28\) matrix. The entries are all floating point numbers in \([0,1]\) and can be interpreted as gray scale values that determines an image.
- A list of \(70,000\) labels each of which is an integer from \(0\) to \(9\) indicating what digit the corresponding matrix represents.

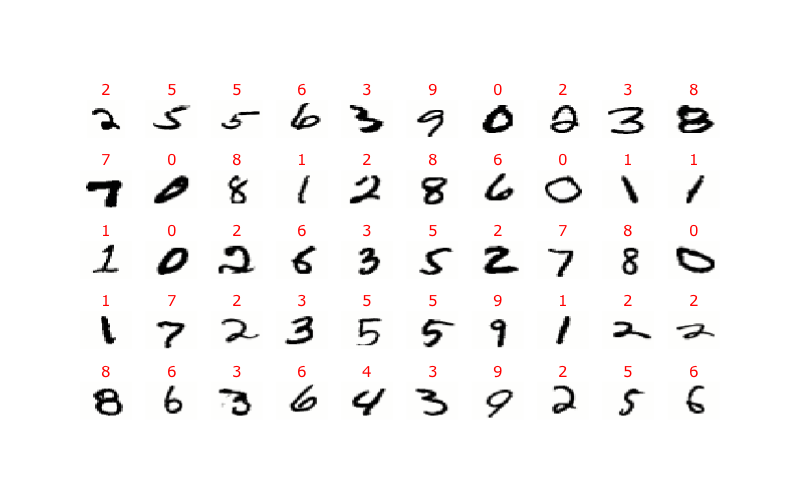

A look at the data
Again, the data consists of a list of 784 dimensional vectors of grayscale values with labels. It’s easy to render those vectors as grayscale images and display them with their labels. Here’s a short subset of the results:
The algorithm
Once we understand both KNN and the MNIST dataset, it’s pretty easy to describe digit classification by KNN. There are two essential steps:
- The data is in the form of a set of 784 dimensional vectors. Thus
- Given another image represented as a 784 dimensional vector, we can
- Find the 20 vectors from the data that are closest to the given vector,
- Determine which labels are most common amongst those 20 vectors, and
- Classify the given vector as the most common label among those 20 nearest neighbors.
- Before that, though, the input vector should be scaled and centered using the same techniques used to generate the MNIST data.
Summary
That’s really all there is to it.
There might be some further questions, though.
Further questions
We’ve got plenty to address this semester when it comes to machine learning algorithms.
- What does 784 dimensional space look like? How do we measure distance there?
- What is a parametric model?
- How do we optimize parametric models?
- What is overfitting and regularization to avoid it?
- How do we deal with categorical data?
- How do we assess our models and how confident can we be in our predictions?
- What does this all look like on the computer?
Mathematics
Of course, this is a math class and, in fact, the answers to those most of those questions really lie in that domain.
- Optimization is one of the major applications of calculus.
- High dimensional vector spaces can be treated efficiently using linear algebra.
- An geometric understanding of high dimensional space will help us regulate our models.
- An understanding of probability theory will help us assess our models.
Algorithms
Here are a few of the algorithms that we’ll take a look at this semester:
- K-nearest neighbor classification (as you already know)
- Regression - Linear and Logistic
- Google pagerank and Eigenrating
- Principal Component Analysis
- Support vector machines
- Neural Networks
